Description

Lenel Access Control LNL-1300 merupakan salah satu pilihan access control yang bisa anda gunakan untuk solusi kemanan pada organisasi anda. Harga Lenel Access Control LNL-1300 pada Ganttari.com merupakan harga pricelist – untuk tambahan diskon silahkan hubungi kami disini. Berikut deskripsi singkat mengenai Lenel Access Control LNL-1300 pada tulisan dibawah – untuk spesifisikasi datasheet Lenel Access Control LNL-1300 dapat dilihat disini.

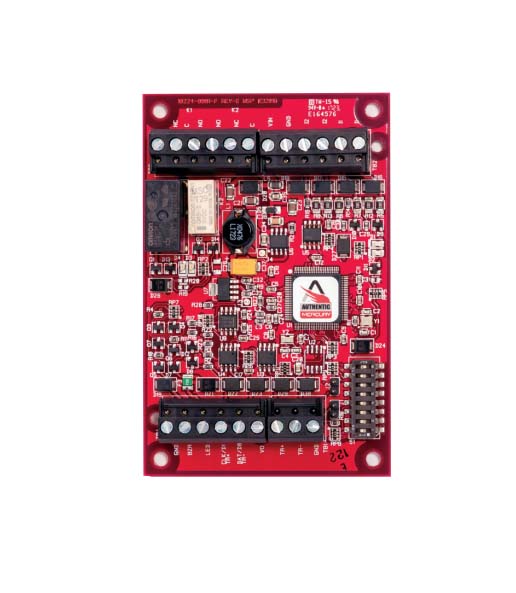

Lenel Access Control LNL-1300 offers a Single Reader Interface (SRI) module for access control solutions. Access control card readers, keypads, or readers with keypads that use standard Wiegand Data1/Data0, Supervised or Unsupervised F2F, or Clock/ Data communication are supported, as are those supporting the bidirectional RS-485 Open Supervised Device Protocol (OSDP). Lock, unlock, and facility code offline access modes are supported on all readers connected to the SRI. Each Lenel Access Control LNL-1300 SRI supports up to 16 different card formats as well as issue codes for both magnetic and Wiegand card formats.

The Lenel Access Control LNL-1300 SRI provides a vital link between the Intelligent System Controller (ISC) and the card reader attached to the interface. As many as 32 SRI modules can be multidropped using RS-485 2-wire communication up to 4,000 feet (1219 m) per port away from the ISC. Each Lenel Access Control LNL-1300 SRI module is individually addressed for increased reporting capabilities with OnGuard access control software applications. The SRI includes two inputs that support normally open, normally closed, supervised, and non-supervised circuits. Two output relays support fail-safe or fail-secure operation.

Features & Functionality

• Two Form-C relay outputs (5 A door strike and 1 A aux relays)
• Up to 16 different card formats
• Issue code support
• Downloadable firmware
• Door contact open or closed, supervised or non-supervised
• REX push-button monitor – supervised or non-supervised
• Strike control output
• Bicolor or 2-wire reader status LED support
• Reader beeper control
• Plastic mounting channel

Dapatkan pilihan sistem Access Control lainnya disini sebagai opsi dari Lenel Access Control LNL-1300. Kami menjamin harga Lenel Access Control LNL-1300 pada Ganttari.com merupakan harga terbaik dengan garansi resmi dari pabrikan di Indonesia (bukan barang paralel import yang tidak memiliki garansi pabrikan di Indonesia).
